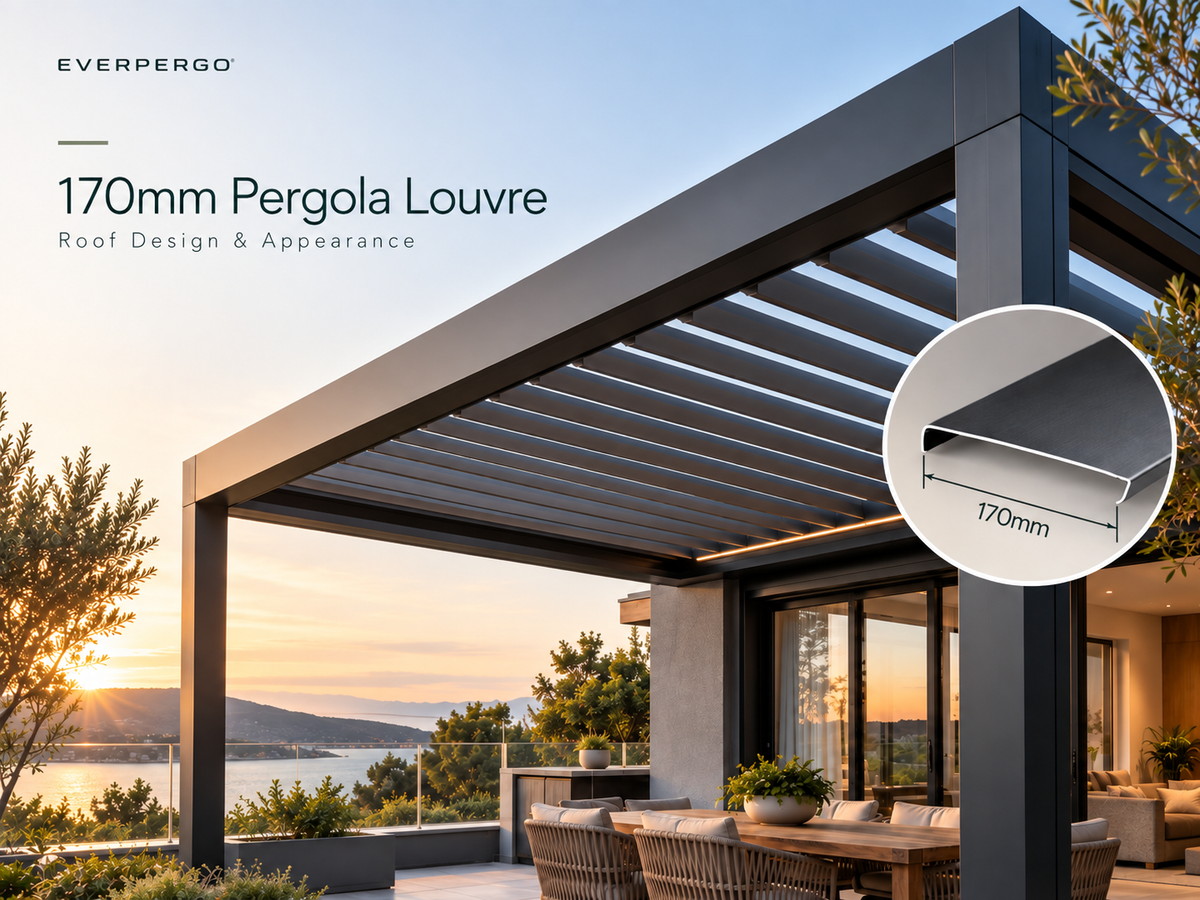

A 170mm pergola louvre refers to the published width dimension of an individual roof blade. It does not describe the blade thickness, the clear spacing between blades, or the total roof coverage. Its real design value is in helping you understand the scale of the blade before you compare the complete roof system around it.
What does 170mm mean on a louvre specification?
Pergola specifications often place several measurements beside one another, even though those measurements describe different parts of the blade. When a louvre is described as 170mm, the useful reading is that 170mm is the published blade-width dimension.
That is different from the profile depth, material thickness and the clear distance between neighbouring blades. Keeping those dimensions separate matters because the 170mm figure alone cannot tell you how many blades will sit across a roof or how large the opening between them will be.
- 170mm
- The published width dimension of the individual louvre blade.
- Blade thickness
- A separate measurement describing the material thickness of the profile.
- Clear spacing
- The open distance between neighbouring blades, which cannot be inferred from 170mm alone.
- Blade count
- Depends on the complete roof layout and repeating geometry rather than blade width alone.
This is the most useful way to read the number: first understand the individual blade, then step back and look at how that blade sits inside the complete roof and frame.
Design takeaway: use 170mm to understand blade scale. Do not use it as a shortcut for roof spacing, blade quantity or overall performance.
How a 170mm louvre changes the way the roof is read
Blade width contributes to the visual rhythm of a louvre roof, but the finished effect comes from repetition. Once the same blade runs across the roof, its edges, spacing and relationship with the outer frame become part of one architectural composition.
A more continuous overhead plane
When the louvres are closed, repeated blade surfaces read more like a complete roof. From a seating or dining position, the relationship between the blade pattern and the surrounding beams becomes more important than the width of one blade by itself.
More visible edges, light and sky
As the louvres open, individual edges become easier to see and the spaces between them enter the view. The 170mm dimension stays the same, but orientation, daylight and viewing direction make the roof feel more articulated.
Roof height also changes the impression. A blade positioned relatively close above a compact courtyard can feel more visually present than the same profile used over a larger entertaining area. Doors, glazing, eaves and nearby roof lines can all affect which part of the pergola attracts the eye first.
A useful comparison is not “Does 170mm look large?” but “Does this repeated blade pattern feel proportionate to the roof and the architecture around it?”
This is why a technical drawing and a real installed view serve different purposes. The drawing tells you what the dimensions are; the installed image helps you judge how those dimensions actually read at architectural scale.
Why the rest of the specification matters
The P180 shows why one louvre dimension should never be read in isolation. Its specification separates the blade dimensions from the beam, post and overall roof dimensions, making it easier to see which number belongs to which part of the structure.
- Louvre type
- Single-layer louvre
- Louvre size
- 170 × 32 × 1.5 mm
- Beam size
- 180 × 40 mm
- Post size
- 140 × 140 mm
- Overall height
- 2500 mm closed; 2554 mm open
In that specification, 170mm answers the blade-width question. The other measurements describe the profile and the structure around it. That distinction becomes especially important when two pergola models appear to share the same louvre width.
The P180 and P180 Pro, for example, both use a 170mm first dimension in their listed louvre sizes, while their listed louvre construction differs. That is a useful reminder that the same width does not automatically mean the same blade construction or the same complete roof system.
When two models both say “170mm”, compare the louvre type, complete blade dimensions and surrounding frame before treating them as equivalent.
What actually matters when you compare louvre roofs
If you are trying to decide whether a 170mm louvre suits your project, the number becomes useful only when it is placed back into the context of the whole pergola.
Start with the blade profile
Read width, profile depth and thickness as separate measurements. This tells you what the component actually is before you start judging the finished roof.
Then judge the repeated roof pattern
Look at several blades together, ideally in both open and closed positions. This gives a much better sense of visual density and proportion than a close-up of one blade.
Finally compare the complete model
Consider louvre construction, beam and post dimensions, roof configuration and the proportions of the space. A shared 170mm width does not make two systems interchangeable.
If you need an exact blade count or clear spacing, the roof layout matters more than the width label. The model-specific repeating geometry and usable roof span need to be confirmed before a reliable calculation can be made.
Simply dividing a roof dimension by 170mm can therefore produce a misleading result, because blade width is not the same measurement as blade pitch or the complete repeating roof geometry.
Choose the complete roof that works with your space, not the pergola that simply presents the largest-looking louvre number.
Common mistakes when reading louvre size
Louvre width is not a quality score. Construction, roof proportions and the complete pergola specification matter more than one isolated dimension.
Perspective can make a blade look larger or smaller than it feels in the finished structure. Use technical information for dimensions and installed images for visual judgement.
Blade width does not tell you the open space between neighbouring louvres. That relationship comes from the complete roof geometry and blade position.
Two models can share a 170mm width while using different louvre construction, frame dimensions or roof configurations.
Frequently asked questions
Is 170mm the louvre thickness?
No. In the P180 specification, the complete listed louvre size is 170 × 32 × 1.5 mm. The 170mm figure discussed here is the blade-width dimension, while the other dimensions describe different parts of the profile.
Can I calculate the number of louvres from 170mm alone?
No. A reliable blade count depends on the model-specific roof layout and repeating geometry as well as the usable roof span. Blade width alone is not enough.
Does the same 170mm width mean the same louvre construction?
No. Width is only one specification attribute. Models can share the same first dimension while differing in blade construction and other parts of the roof system.
Does louvre width determine shade or weather performance?
Not by itself. Shade, roof opening and weather behaviour depend on the complete roof geometry, blade position and model specification rather than one width measurement.
Should I choose a pergola based on louvre size?
Louvre size is useful for understanding blade scale, but the final choice should consider the complete model, frame proportions, roof configuration and how the pergola relates to the intended outdoor space.
Compare the roof, not just the 170mm number.
Once the blade scale makes sense, the next useful step is to compare the complete pergola specification against the dimensions and constraints of your actual outdoor space.
- Approximate roof width and depth
- Freestanding or wall-mounted layout
- Door, eave and clearance constraints
- A photo of the proposed installation area
